XFG II Hanging Cell Flotation Machine
Product Overview
The XFG II Series Hanging Cell Flotation Machine is a laboratory flotation device developed for mineral beneficiation testing, flotation reagent evaluation, and flotation process research. The machine integrates variable-frequency speed regulation and digital speed display technology, enabling precise control of impeller speed and flotation conditions.
Key Features
Variable Frequency Speed Control
Adjustable impeller speed from 0-2800 rpm for different flotation requirements.
Digital Speed Display
Real-time display of operating speed ensures accurate experimental control.
High Test Repeatability
Stable operating conditions improve consistency and reliability of flotation tests.
Multiple Cell Capacities
Available with flotation cell volumes from 20 ml up to 2000 ml.
Precise Mixing Performance
Optimized impeller design ensures efficient slurry suspension and aeration.
Compact Laboratory Design
Space-saving structure suitable for laboratories and research facilities.
Easy Operation
User-friendly control panel simplifies test setup and operation.
Applications
The XFG II flotation machine is widely used in:
- Mineral processing laboratories
- Universities and colleges
- Geological exploration institutes
- Mining research centers
- Metallurgical laboratories
- Coal and building material industries
- Chemical industry laboratories
The equipment provides excellent flotation reproducibility and testing accuracy, helping researchers optimize flotation processes and evaluate flotation reagents efficiently.
Technical Specifications
| Item |
Unit |
XFG II 5-35 |
XFG II 50-100 |
XFG II 250-500 |
| Flotation Capacity |
g |
5 / 15 / 25 / 35 |
50 / 100 |
250 / 500 |
| Cell Volume |
ml |
20 / 60 / 100 / 140 |
200 / 400 |
1000 / 2000 |
| Impeller Diameter |
mm |
Φ20 / Φ26 / Φ30 |
Φ36 / Φ48 |
Φ60 / Φ64 |
| Impeller Speed |
rpm |
0-2800 Adjustable |
| Feed Particle Size |
mm |
0.05-0.2 |
| Motor Power |
W |
120 |
| Overall Dimensions |
mm |
420 × 300 × 700 |

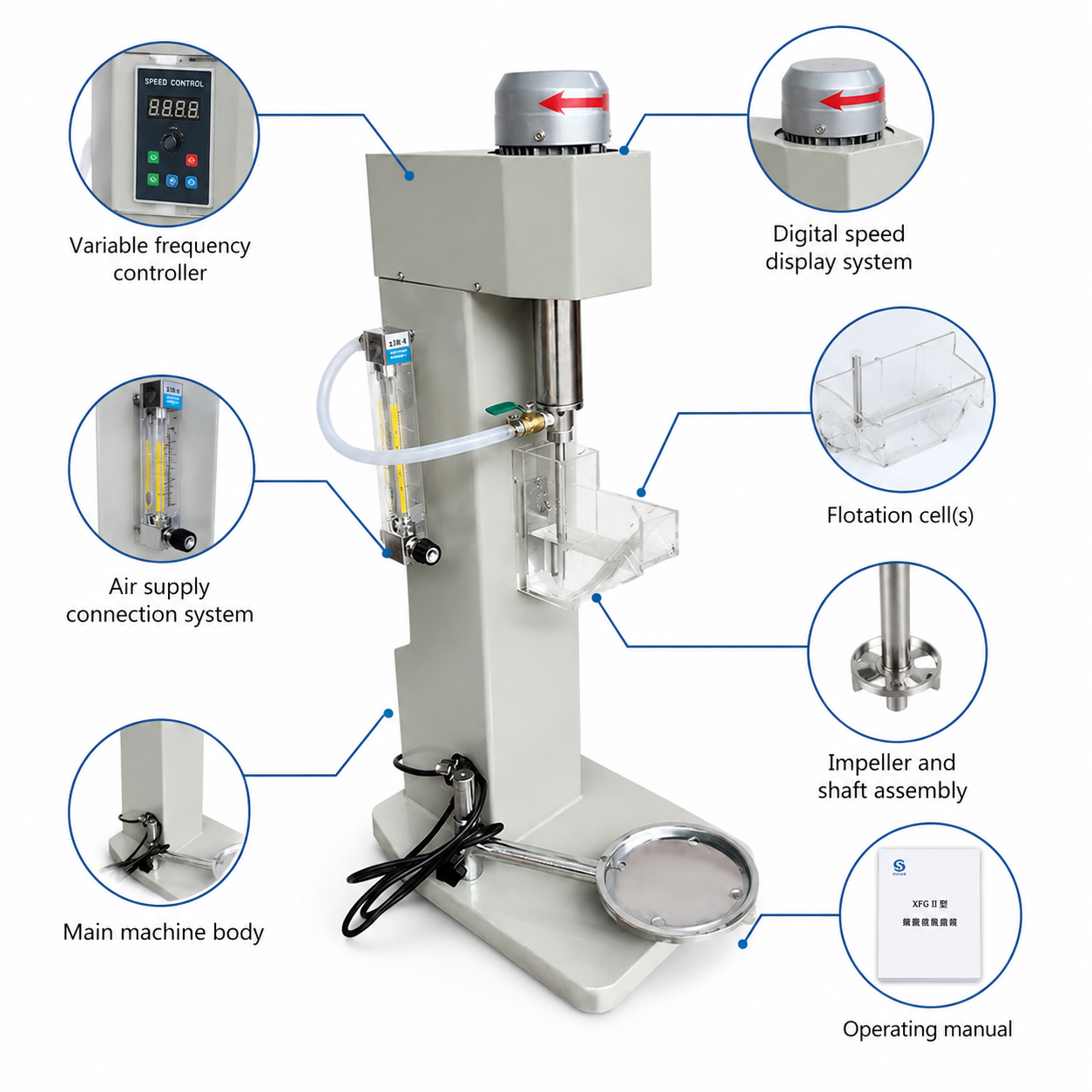

Standard Configuration
The machine typically includes:
- Main machine body
- Variable frequency controller
- Digital speed display system
- Flotation cell(s)
- Impeller and shaft assembly
- Air supply connection system
- Operating manual
Packaging & Shipping
Packaging
- Export Standard Plywood Case
- Internal Protective Foam
- Moisture-Proof Wrapping
- Shock-Resistant Packing
Frequently Asked Questions
Q1: What is the main application of the XFG II flotation machine?
It is mainly used for laboratory flotation tests, mineral beneficiation research, reagent evaluation, and process development.
Q2: Is the flotation speed adjustable?
Yes. The machine adopts variable-frequency speed regulation with a speed range of 0-2800 rpm.
Q3: What flotation cell sizes are available?
Cell capacities range from 20 ml to 2000 ml depending on the selected model.
Q4: Which minerals can be tested?
Gold, copper, lead-zinc, iron, tungsten, molybdenum, fluorite, graphite, rare earth minerals, and many other ores.
Q5: Can customized flotation cells be supplied?
Yes. Customized cell capacities and configurations are available upon request.
